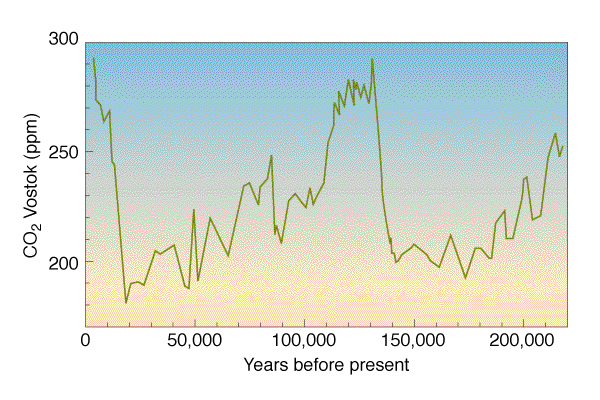

The Vostok ice core record showing CO2 changes that closely
track global climate change on glacial-interglacial time scales. This data set clearly shows that
there is some linkage between CO2 and global climate, although
the nature of their relationship is still not well understood.
|
|

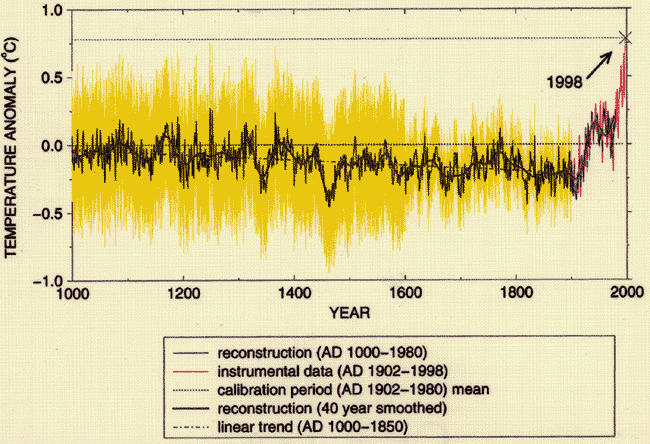

| Reconstruction of Northern Hemisphere temperature anomaly
trend from 1000 A.D. to present from dendroclimatic, coral, and
ice-core proxy records as calibrated by instrumental measurements.
The thin curves give reconstruction and raw data from 1000-1998
A.D. A smoothed version (thick solid), linear trend from 1000
to 1850 A.D. (long dashed), and two standard error limits (yellow
shaded) are also shown. Note the recent rapid increase in temperatures
over the past 50-100 yrs that appears to be out of line with
the general trends of the last thousand years. |
|
